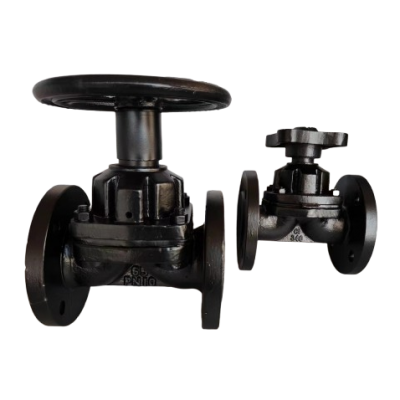

SAUNDERS Type A Diaphragm Valve (Weir Design)
A diaphragm valve is a bi-directional, on-off throttle valve used to control fluid flow by regulating the area through which the media can enter and exit the valve. This effectively changes the fluid’s speed and velocity. Known for their excellent sealing capabilities and resistance to corrosion, diaphragm valves are ideal for applications requiring sanitary conditions and chemical resistance. They are widely used in industries such as pharmaceuticals, food and beverage, water treatment, and chemical processing. Diaphragm valves are easy to clean and maintain, making them suitable for processes that require frequent sterilization and high purity standards.
Product Catalogue(s)
General Technical Data
Structure
Size
Normal pressure
Design standard
Marked
Fire safe design
End flange
Face to Face
Test standard
Suitable temperature
Medium
Acidic environment
Operation
Weir Pattern Diaphragm Valve
1/2″ – 12″; DN15 – DN300
Class 125LB,150LB,300LB; PN10, PN16, PN25
GB/T 12239, MSS-SP-88, ISO 5752, BS 5156
MSS SP-25
API607, API 6FA
ANSI B 16.5, ASME B16.47; EN1092, DIN2543~DIN2547, AS2129
ANSI B 16.10, API 6D; DIN3202, EN558-1, EN12982, ISO 5752
BS 5156, MSS SP-82, API 598
-29~150°C
Fresh Water, Sewage, Sea Water, Air, Vapor, Food, Medicine, Oils, Alkalis, Salt Etc.
NACE MR0175
Hand Operated, Gear Operated, Electrical Actuated, Pneumatic Actuated
