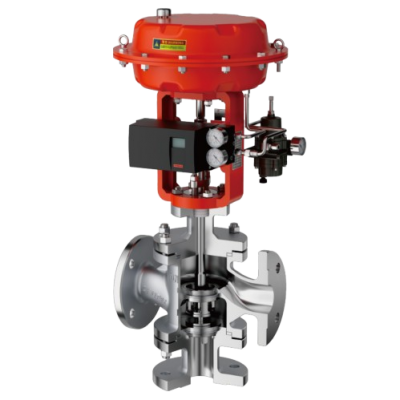

Pneumatic 3-Way Control Valve (Converging/Diverting)

The pneumatic 3-way converging/diverting control valve features a dual valve plug structure with upper and lower guiding, paired with various spring actuators, The valve body has a 4-way structure, available in two configurations: one-inlet-two-outlets (diverting type) for fluid splitting or two-inlets-one-outlet (converging type) for fluid mixing. The configurations enable functions such as temperature adjustment through fluid mixing or uneven liquid diversion, meeting diverse operational requirements.

The valve body offers advantages including compact structure, light weight, sensitive action, minimal pressure drop loss, high allowable pressure difference, large capacity, precise flow characteristics, and easy maintenance. It is suitable for various working conditions, particularly temperature control systems in petroleum industry heat exchangers and automation control across industries.
