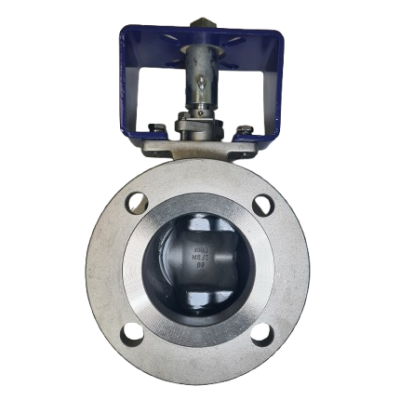

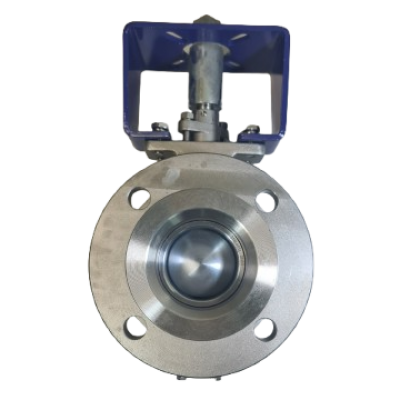

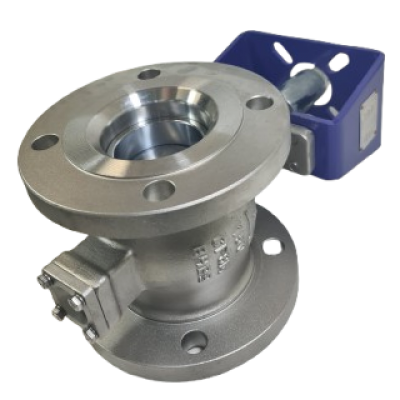

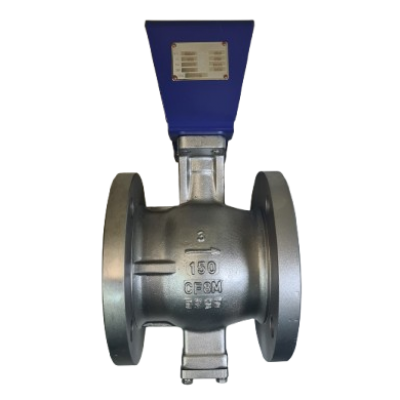

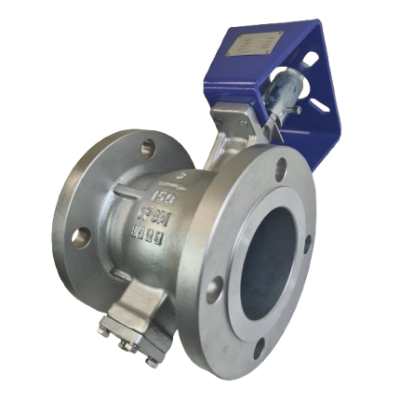

Flange End Segment Ball Valve
The Flange End Segment Ball Valve provides reliable flow control in piping systems, featuring a unique segment design that allows for efficient throttling and tight sealing. Ideal for applications in industries such as oil & gas, water treatment, and chemical processing, this valve offers superior performance in managing high flow rates and pressures. The flange end connections ensure easy installation and maintenance, while its robust construction guarantees durability and longevity even in demanding environments. This valve is essential for achieving precise flow regulation and enhancing system efficiency.
General Technical Data
Design standard
Wall thickness standard
Thread standard
Pressures Range
Size Range
Body Material
Face To Face
Flanged RF, FF, RTJ Ends
Butt-Weld BW Ends
Socket-Weld SW Ends
Working Temperature
Testing standard
ANSI B16.34, API 608
ANSI B16.34, EN12516-3
ANSI B1.20.1; BS21; DIN 2999/259; ISO 228-1; ISO7/1; JIS B0203
ANSI 150lb ~ANSI 300lb, PN16~PN64,JIS-10K 1000-2000PSI
DN8(1/4″) ~DN150 (6″)
Carbon Steel, Stainless Steel, Alloy Steel, Duplex Steel, etc
ANSI B16.10; DIN3202 F1, F4/F5; JIS B2002
ASME B16.5 CLASS 150/300; EN1092-1; HG20592 PN10-PN40; JIS B2238 10K/20K
ASME B16.25, ISO1127/EN12627
ANSI B1.20.1; BS21; DIN2999/259; ISO228/1; ISO7/1; JIS B0203
-196℃~300+℃
API 598; EN 12266
General Design Features
Construction
Port
Ball Type
Stem
Seat Sealing
Fire Safety
Other Design
Three Pieces Body, Two Pieces Body, One Piece Body
Full Bore, Reduced Bore, V-Port, Two-Way, Three-Way, Multi-Port Way
Floating Ball, Fixed Ball-Shaped Ball Valve, The 3-Way Ball Valve
Blowout-Proof Stem
Integral Body Seat, Seat Welded and Overlaid
API 607 4th Edition, BS 5351
Anti-Static Design, Automatic Pressure Relief Design, Emergency Grease Injection Design, Drain Valve, Anti-Corrosion Design, Anti-Sulphur Design, etc
