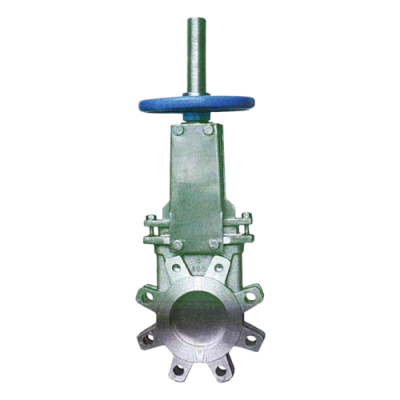

Knife Gate Valve Lug Type Handwheel (Rising Stem) Series GKA073
A knife gate valve is a type of valve designed for isolating or controlling the flow of thick, viscous, or slurry-like fluids. It features a sharp-edged gate that slices through the material, ensuring a tight seal and minimal clogging. Knife gate valves are known for their robust construction and ability to handle abrasive and corrosive media. They are commonly used in industries such as wastewater treatment, mining, pulp and paper, and chemical processing. These valves are ideal for applications requiring reliable shutoff and low-pressure drop, providing efficient flow control in challenging environments.
Product Catalogue(s)
General Technical Data
Flange End Connection
Body Material
Gate (Knife)
Size
Working Pressure
DIN PN10
GGG40 Ductile Iron, ASTM 351 / Gr. CF8M
SS-304/SS-316
DN50 – DN 400
DN 50 – DN 200 = 10 bar (kg/cm2)
DN 250 – DN 400 = 6 bar (kg/cm2)
