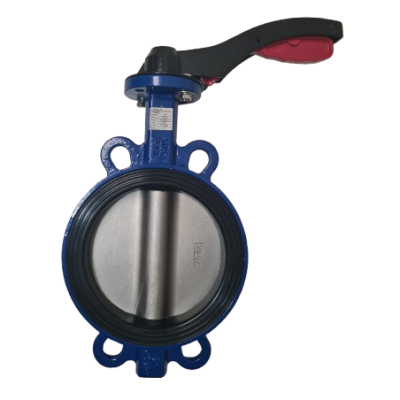

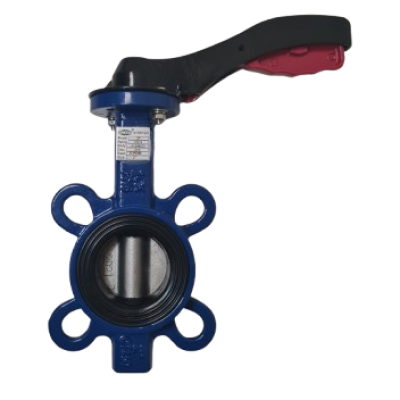

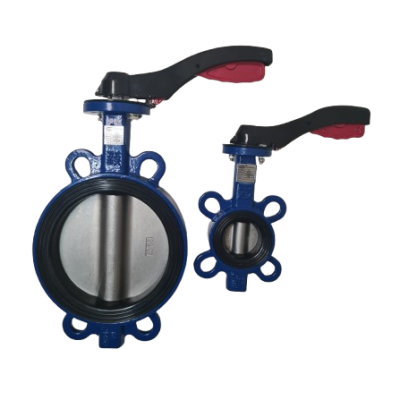

Series ZF Soft Seat Wafer Type Centric BFV Ductile Iron Body
A butterfly valve is a quarter-turn valve used to regulate the flow of fluids. It consists of a circular disc mounted on a rotating shaft, which allows for quick shutoff and precise flow control. When the valve is fully closed, the disc seals against a resilient liner to stop the flow completely. Butterfly valves are known for their lightweight design, ease of operation, and cost-effectiveness, making them ideal for applications in various industries such as water treatment, chemical processing, and HVAC systems. They are especially suitable for large diameter pipes and systems requiring frequent operation.
Product Catalogue(s)
General Technical Data
Nominal Diameter
Face to Face
End Connection
Wall Thickness
Valve Design
Flange accommodation
Top Mounting Flange
Pressure Test
Marketing System
ATEX Certifications
ABS Certification
Seats
Temperature Range
Operating pressure
Differential pressure
Vacuum
Body Coating
DN 40 – DN 1000 (1 1/2″ – 40″)
API 609, ISO 5272, AWWA C504 (54″-72″)
Wafer, Lugged, Flanged
ASME B16.34, AWWA C504
ASME B16.34, ISO 5208, API 609
ANSI B16.5 Class 150, DIN 2501 PN 6/10/16, JIS B2211 – 5K, JIS B 2212 – 10k
ISO 5211 up to INCH 24 (DN 600)
ISO 5208, AWWA C504 (54″-72″)
MSS-SP-25
ATEX 2014/34/EU
ABS Steel Vessel Rules 1-1-7/7, 4-6-2/5.11
Soft Seated (Resilient Seated)
-20°C to 204°C (depending on pressure, medium & material)
10 Bar (STD), 16 Bar (Option)
Max. Delta P 16 Bar
0.2 bar absolute (depending on medium and temperature)
Epoxy Resin (Blue)
